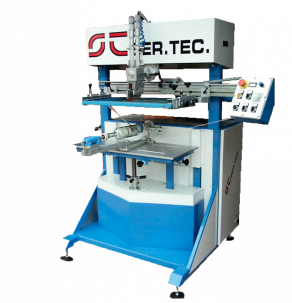

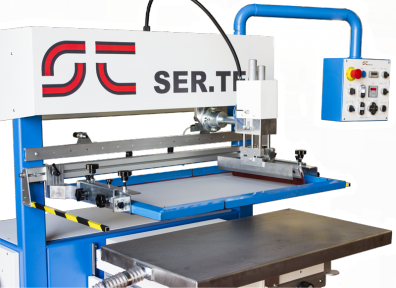

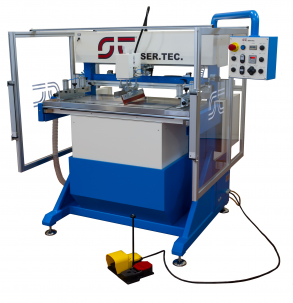

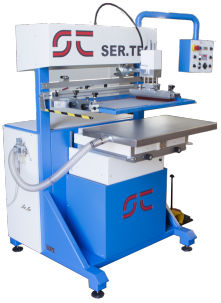

semi automatic screen printing machines - S1 Series

Descrizione breve:
S1 is the result of years of experience in screen printing, is the machine more versatile in the market. Thanks to its varied composition allows printing on an object is multi-faceted plan.
Get more informations

S1 are the most versatile screen printer in the market, the result of years of experience on the field.
They are available in a lot of forms for cover all the needs of productions and it allows the print on every object, flat or round.

Is present the version for the round print, one with the vacuum table and an other with an outgoing table.
Furthemore, on request, it could be developed personalized solutions to adapt the screen printer to particular production needs.

They are equipped with innovative systems as:
expansive PLC, print group with free or inclinable squeegee, adjustable squeegee incidence, directional control panel, proximity magnetic sensors, adjustable contact over 4 points, X, Y, Z micrometric recordings on floor and frame, print thickness adjustment from 0 to 150 mm, double pedal with start and stop cycles, self pressure and speed adjusting squeegee / scraper, adjustable print speed, press plan with grooves for silhouette fixing, setting up / downhole speed of the plane rear opening for large frame insertion, adjustable anti-vibration pins.

Flat print area: 600x350 / 700x500mm
Power: electropneumatic
Exercise pressure: 6Bar
Absorption: 1 / 1,5 Kw
Max screen width: 780 / 1050mm
Cycle: manual / semiautomatic / automatic

pneumatic frame lock
laser centering system

Number of colors:
