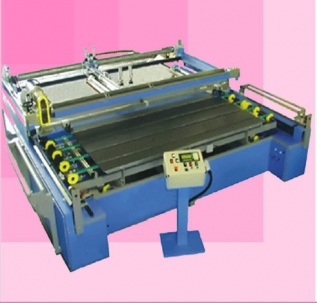

SCREEN PRINTING MACHINE GLASS x mod belt. S3 C P glass





Descrizione breve:
SCREEN PRINTING MACHINE GLASS x mod belt. S3 C P glass

The machine line S3 C P was created to make large prints and on different thicknesses with maximum flexibility, thanks to innovative systems of registration and register setting.
To insert and remove the frame, S3P GLASS has reduced times per minute.
Machine made ​​of medium-heavy carpentry and painted with epoxy to seal solvents.

Structure is composed of:
- Support with squeezer with associated motors and traction
- Adjustable door frame
- Piano print is mounted on rails for the entry and exit and to obtain better control of the press and better loading and increased production

P 2 S 3 GLASS:
Top with retractable belt system with automatic feeding and unloading system.
- Frame with raised parallel to the machine
- Loading and unloading: manual
- Out of frame: Automatic
- cleaning chassis with manual feed
- Group press forward
- Teams for locking adjustable glass

- FUNDING OF BELTS

- Print size capacity: from 1000 to 5000 mm
- Frame size capacity: 3000 to measure free
- Max printing thickness: 0 to 25 mm
- Angle of incidence raclea: Adjustable
- Print Speed​​: variable
- Operation: Electro
- Adjust frame micrometer X Y Z
- Three operating cycles: Auto. with timer | single shot with pedal | manual keyboard.
- Adjustment of printing via proximity sensors
- Engine: car braking
- Rotation of raclea for recovery drops

Manufacturer:
Ser.Tec.
