S1-300 Ribbons special 1C

Descrizione breve:
S1-300 Ribbons SPECIAL: automatic screen printing machines for printing on fabric ribbons and plastic.
Get more informations

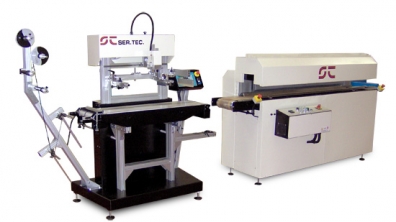

The S1-300 Special is a system composed of a screen printing machine, wich can print from one to four tapes in monochrome, and a eletric oven.
Tapes can be either tissue or syntetic material.

Technical data:
Weight 600 Kg
Power 13.5 Kw
Voltage 250-380 V 50 Hz
pneumatic supply 6 bar
Oven amperage 24 A
Oven power 13 Kw
Max oven temperature 180°
Tunnel length 2000 mm
Tunnel height 100 mm
Ampere printing machine 24 A
Screen printing machine 0,4 Kw
Max colis height 100 mm
Max coils 4 coils 12 mm height
Print size: 330 x 200 mm
Screen size: 550 x 400 mm
Dimensions screen printing machine
Width 740 mm
Depth 1860 mm
Height 1540 mm
Weight 300Kg
Dimensions oven
Width 2800 mm
Depth 940 mm
Height 1280 mm
Weight 180 Kg
